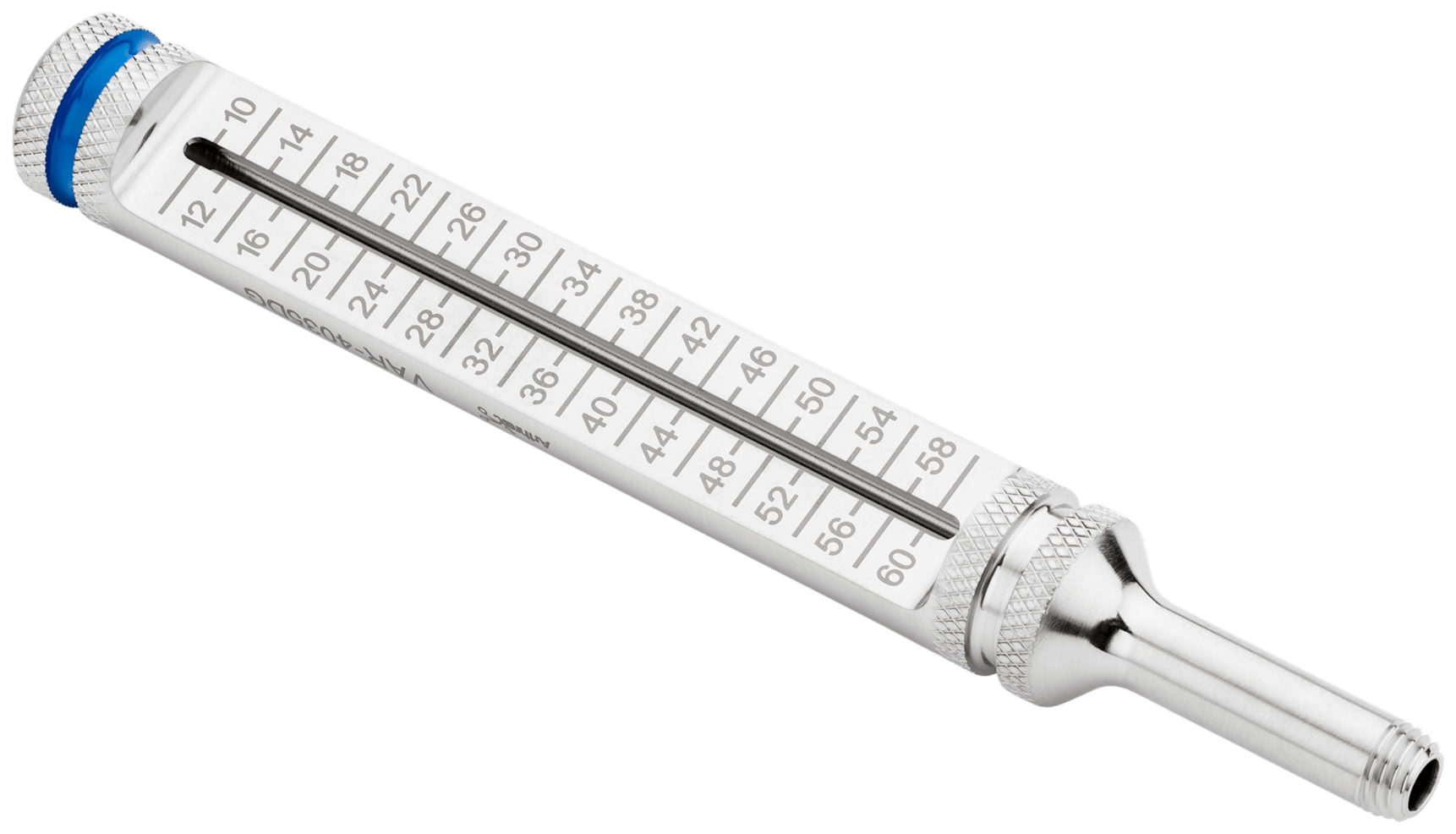

Threaded Drill Guide, Locking, 3.5 mm

TPLO-Bohrhülse, winkelstabil, 3.5 mm, Vet

Guia de perfuração TPLO, 3,5 mm, bloqueio

Finished Product

VAR-4035DG

Screw Holding Forceps, Self-Retaining, Vet

Screw Holding Forceps, Self-Retaining, VET

Pinça de fixação de parafusos, auto-retentora, VET

Depth Device, 2.7/ 3.5/ 4.0 mm, Low Profile, Vet

Tiefenmesser für 2.7 mm / 3.5 mm / 4.0 mm Schrauben, Vet

Depth Device, 2.7 / 3.5/ 4.0 mm, Low Profile, VET

Dispositivo de profundidad, bajo perfil, 2,7 / 3,5 / 4 mm,VET

Dispositivo de profundidade, 2,7 mm / 3,5 mm / 4,0 mm , baixo perfil, VET

Vet Systems - Small Animal

Product

The Arthrex Vet MPL plates follow the same anatomic engineering aspects of the Tibial Plateau Leveling Osteotomy (TPLO) Plating System with additional features to address medial patella luxation.&nbsp; The MPL plate includes a step to offset the fragment from the long bone of the tibia creating medial tibial plateau translation and a locking screw distal to the cut protecting the osteotomy.&nbsp; The plates are also designed to have proximal and distal locking holes to be less prominent under the skin. Proximal screw holes with specific trajectories within the proximal fragment. The distal end has limited bone contact and is designed with two k-wire holes to aid in positioning, the plates are also contoured to the bone, marked with a laser line for optimal positioning and step location. Additionally, the plates include a suture hole proximally for the application of an InternalBrace™ ligament augmentation, providing rotational stability. Finally, the distal end of the plate incorporates VetSuture holes on the cranial aspect to aid in soft tissue closure.&nbsp; The Arthrex Vet MPL Plating System has been created by veterinarians for veterinarians making a more reproducible procedure for happier and healthier patients.&nbsp;

Size range includes 1.6 mm, 2.0 mm, 2.4 mm, 2.7 mm, 3.0 mm, 3.5 mm small, 3.5 mm standard, and 3.5 mm broad in left and right options.

Key Features and Benefits
<ul>
 <li>Step to offset the fragment including slight torsional rotation on smaller sizes</li>
 <li>Proximal screw trajectories avoid the joint</li>
 <li>Distal suture hole to aid in soft tissue closure</li>
 <li>Scalloped underside to distribute stress and minimize contact</li>
 <li>Proximal suture hole to support rotational stability</li>
 <li>Multiple K-wire holes allow surgeons to choose what is best for the patient</li>
 <li>Distal locking hole to protect the osteotomy site</li>
 <li>Laser line represents the location of the step</li>
 <li>Anatomic plate design with left and right options</li>
</ul>

OrthoLine™ Medial Patella Luxation (MPL) System

Child (D)

The OrthoLine fracture management system allows the surgeon to perform a fracture repair with the same screws used in the TPLO System. The 70-plate, state-of-the-art fracture line includes sizes 1.6 mm, 1.6 mm broad, 2.0 mm, 2.4 mm, 3.0 mm, and 3.5 mm for straight and T-style plates and 3.5 mm broad straight plates for both feline and canine patients.
Designed with the surgeon in mind, the plates have many features to help create a more reproducible procedure: The locking straight plates include a slide hole, which allows slight movement across the fracture line to facilitate the best plate placement. The low-profile design reduces prominence under the skin and features, limiting bone-to-plate contact. Plate size and length were specifically designed to include hole-to-hole spacing.
Tight screw density on the distal and proximal ends with larger bridges near the center of the plate allows surgeons to fit more screws in the same footprint than competitive plates. Additional features designed to aid in proper plate placement include K-wire holes, variable-angle locking screws for the titanium lines, slide holes, and compression holes. OrthoLine plates can be contoured using size-specific bending irons and cannulated bending plugs, which can also function as K-wire holes in any locking screw hole.
In addition to the new OrthoLine fracture plates, the fracture management system includes a variety of screw options, including fully threaded headless compression screws, partially threaded screws, cannulated lag screws, low-profile screws, and QuickFix™ cannulated screws.
<ul>
 <li>High screw density where needed</li>
 <li>Slide and compression holes</li>
 <li>Strong plate for bridging</li>
 <li>Low plate contact and low profiled</li>
 <li>Color coded for easier identification</li>
 <li>K-wire holes</li>
 <li>Cortical/locking/variable-angle locking screws</li>
 <li>Indicated for sizes from small cats to large dogs</li>
</ul>

OrthoLine™ Fracture System

The Arthrex OrthoLine™ distal femur osteotomy system incorporated surgeon input with key engineering features for an innovative design that is specific to small animal anatomy. The state-of-the-art plating line includes several key features.
&nbsp;
<ul>
 <li>Anatomic design</li>
 <li>High screw density where it's needed</li>
 <li>Specific screw trajectories</li>
 <li>Low plate-to-bone contact, tapered ends, and low profiled</li>
 <li>Color-coded for easy identification</li>
 <li>K-wire holes</li>
 <li>Cortical/locking/variable-angle locking screws</li>
 <li>Suture hole to facilitate soft-tissue closure and support</li>
</ul>

OrthoLine™ Distal Femur Osteotomy System

The Arthrex OrthoLine™ radial fracture plate system includes 1.6 mm, 2.0 mm, 2.4 mm, 3.0 mm, and 3.5 mm sizes. Each plate is anatomically contoured to mimic the anatomy of patients within a given size range. The system is designed with multiplanar distal screw trajectories and proximal screws centrally aligned within the bone to improve screw pullout. The plates are thinner than a standard T-plate or straight plate, providing less soft tissue interference. The tubular bottom enables better conformity to the patient’s bone structure and increases the area moment of inertia. This unique design also includes a fracture-spanning bridge with a compression screw hole providing compression across the fracture site, bending plugs, and several k-wire holes to assist in preliminary placement. The plates are designed for a cranial-medial placement, but a cranial-lateral placement can be used with the contralateral side plate.
&nbsp;
Features and Benefits
<ul>
 <li>Multiplanar distal screws</li>
 <li>Proximal screw trajectories to align centrally in the bone</li>
 <li>Designed for distal radial fractures</li>
 <li>Anatomic plate design with left and right options</li>
 <li>High screw density where needed</li>
 <li>Tapered design to avoid soft tissue irritation</li>
 <li>Compression hole</li>
 <li>Fracture-spanning bridge</li>
 <li>Two placement options</li>
</ul>

OrthoLine™ Radial Fracture System

The Arthrex OrthoLine™ femur fracture system includes two innovative anatomic femur designs. The proximal femur plate and distal femur plate systems were designed with surgeon input and key engineering features. Specific to small animal patients, the state-of-the-art plating line includes several key features.
&nbsp;
<ul>
 <li>Anatomic design</li>
 <li>High screw density where it's needed</li>
 <li>Specific screw trajectories</li>
 <li>Low plate-to-bone contact, tapered ends, and low profile</li>
 <li>Color-coded for easier identification</li>
 <li>K-wire holes</li>
 <li>Cortical/locking/variable-angle locking screws</li>
 <li>Suture hole to facilitate soft-tissue closure and support</li>
</ul>

OrthoLine™ Femur Fracture System

The OrthoLine ilial fracture plate system includes sizes of 1.6 mm, 2.0 mm, 2.4 mm, 3.0 mm, and an additional long 3.5 mm plate for larger dogs. Each plate size is anatomically contoured to mimic the anatomy of patients within a given size range. The plate includes cranial divergent screw trajectories to improve purchase in the cranial ilium. The caudal screw trajectories are more dorsally oriented to help diverge away from the coxofemoral joint.&nbsp; Additionally, the ilial plate includes a suture hole paired with Arthrex VetSuture for apposition of the gluteal musculature at closure.&nbsp;
&nbsp;
Features and Benefits
<ul>
 <li>Divergent cranial screw trajectories for added pullout strength</li>
 <li>Caudal screw trajectories to diverge from coxofemoral joint</li>
 <li>Designed for cranial, caudal, and oblique fracture patterns</li>
 <li>Anatomic plate design with left and right options</li>
 <li>High screw density where needed</li>
 <li>Suture hole to aid in soft tissue closure</li>
 <li>Scalloped underside to distribute stress and minimize contact</li>
</ul>

OrthoLine™ Ilial Fracture System

Arthrex TPLO instruments are designed to help surgeons perform more reproducible procedures.
<ul>
 <li>Unique, high-quality instruments for more successful procedures</li>
 <li>Multiple size popliteal protectors for different patient sizes</li>
 <li>Locking drill guide seconds as a depth gauge while using the appropriate Arthrex drill bit</li>
</ul>

TPLO Instruments

Developed with surgeons and their staff in mind, the Arthrex TPLO set includes the standard required instruments along with several new instruments specifically designed to help create a more reproducible TPLO procedure.

The case can hold TPLO plates, a drop-in screw caddy with measuring guide, and instruments, making this tray ideal for housing equipment and implants together, if desired. Customize your ideal TPLO pack using the bottom pin mat, which provides space for other instruments. The case size is factored for the most common autoclave.

Extensive research and development were put into the design of the Arthrex 2.0/2.4 mm TPLO Locking Plate. Key features make plate placement easier and more consistent. This is not a shrunken version of the Arthrex TPLO plates; it was designed specifically for small-breed bone anatomy.
<ul>
 <li>The plate offers the option of a knotless anti-rotation lateral stabilization technique (InternalBrace™ ligament augmentation) in dogs with severe stifle instability</li>
 <li>Surgeons love the fit and profile of the plate, and the caudal tilt is great for screw purchase</li>
 <li>Proximal screw trajectory is directed to avoid the osteotomy</li>
 <li>Minimal contouring is required</li>
 <li>Color-coding makes it easy to identify implants and instrumentation</li>
</ul>

TPLO Sets and Cases

TPLO-Instrumentenset, 2 mm / 2.4 mm, Vet

Container, Schrauben-Caddy für 2 mm TPLO-Schrauben, Vet

Container, Schrauben-Caddy für 2.4 mm TPLO-Schrauben, Vet

TPLO-Schrauben-Caddycontainer, 2.7 mm, Vet

3.0 mm OrthoLine Screw Caddy - VAL

3.0 mm  OrthoLine Screw Caddy - VAL, VET

Hohmann-Retraktor, Low Profile, 8 mm, Vet

Bohrhülse mit Gewinde, winkelstabil, 3.0 mm, Vet

Drill / Depth Guide, Locking, 3.0 mm, VET

Bohrer, mit AO-Anschluss, 2.3 mm, kurz, Vet

Gewindeschneider / Bohrhülse, 3.0 mm / 2.3 mm, Vet

Bohrhülse für variabel winkelstabile Schrauben, 3.0 m m, Vet

Schrauben-Caddy für 3.5 mm TPLO-Schrauben, Vet

TPLO-Schrauben-Caddycontainer, 4.5 mm, Vet

Threaded Drill Guide, Locking, 3.5 mm

VAR-4035DG

VAR-4035DG pertenece a Establecer artículos de (1)

VAR-4035S
