OrthoLine™ Medial Patella Luxation (MPL) System

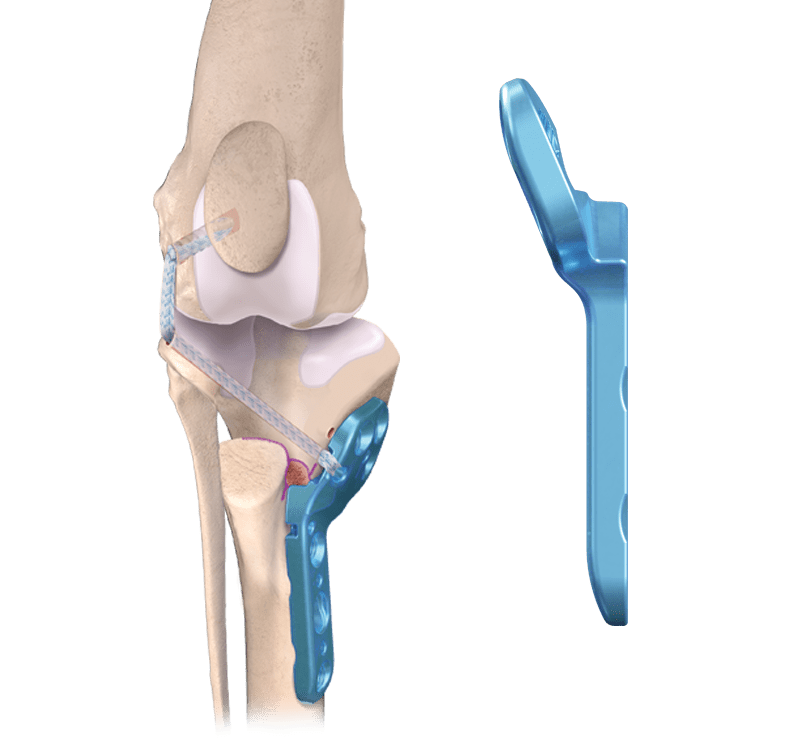

The Arthrex Vet MPL plates follow the same anatomic engineering aspects of the Tibial Plateau Leveling Osteotomy (TPLO) Plating System with additional features to address medial patella luxation. The MPL plate includes a step to offset the fragment from the long bone of the tibia creating medial tibial plateau translation and a locking screw distal to the cut protecting the osteotomy. The plates are also designed to have proximal and distal locking holes to be less prominent under the skin. Proximal screw holes with specific trajectories within the proximal fragment. The distal end has limited bone contact and is designed with two k-wire holes to aid in positioning, the plates are also contoured to the bone, marked with a laser line for optimal positioning and step location. Additionally, the plates include a suture hole proximally for the application of an InternalBrace™ ligament augmentation, providing rotational stability. Finally, the distal end of the plate incorporates VetSuture holes on the cranial aspect to aid in soft tissue closure. The Arthrex Vet MPL Plating System has been created by veterinarians for veterinarians making a more reproducible procedure for happier and healthier patients. Size range includes 1.6 mm, 2.0 mm, 2.4 mm, 2.7 mm, 3.0 mm, 3.5 mm small, 3.5 mm standard, and 3.5 mm broad in left and right options.

Key Features and Benefits

Step to offset the fragment including slight torsional rotation on smaller sizes
Proximal screw trajectories avoid the joint
Distal suture hole to aid in soft tissue closure
Scalloped underside to distribute stress and minimize contact
Proximal suture hole to support rotational stability
Multiple K-wire holes allow surgeons to choose what is best for the patient
Distal locking hole to protect the osteotomy site
Laser line represents the location of the step
Anatomic plate design with left and right options

Key Features and Benefits

Step to offset the fragment including slight torsional rotation on smaller sizes
Proximal screw trajectories avoid the joint
Distal suture hole to aid in soft tissue closure
Scalloped underside to distribute stress and minimize contact
Proximal suture hole to support rotational stability
Multiple K-wire holes allow surgeons to choose what is best for the patient
Distal locking hole to protect the osteotomy site
Laser line represents the location of the step
Anatomic plate design with left and right options

Request Product Info

Educational Resources and Products

All Resources

All Products

Documents

(9)

English

(9)

Clear All Filters

Surgical Technique Guides (1)

OrthoLine™ Medial Patella Luxation (MPL) System

English | 12/10/2024 | vLT1-000320-en-US B

Brochures (1)

OrthoLine™ Fracture Plates

English | 09/17/2024 | vBR1-004344-en-US C

Catalogs (1)

Vet Systems Product Catalog

English | 04/21/2023 | VLB1-0001-EN H

Inventory Control Forms (5)

Inventory Control Form: 3.5 mm OrthoLine™ MPL Plates and Screws

OrthoLine™ Medial Patella Luxation (MPL) System

Educational Resources and Products

All Resources

All Products

Documents

Languages

Surgical Technique Guides (1)

OrthoLine™ Medial Patella Luxation (MPL) System

Brochures (1)

OrthoLine™ Fracture Plates

Catalogs (1)

Vet Systems Product Catalog

Inventory Control Forms (5)

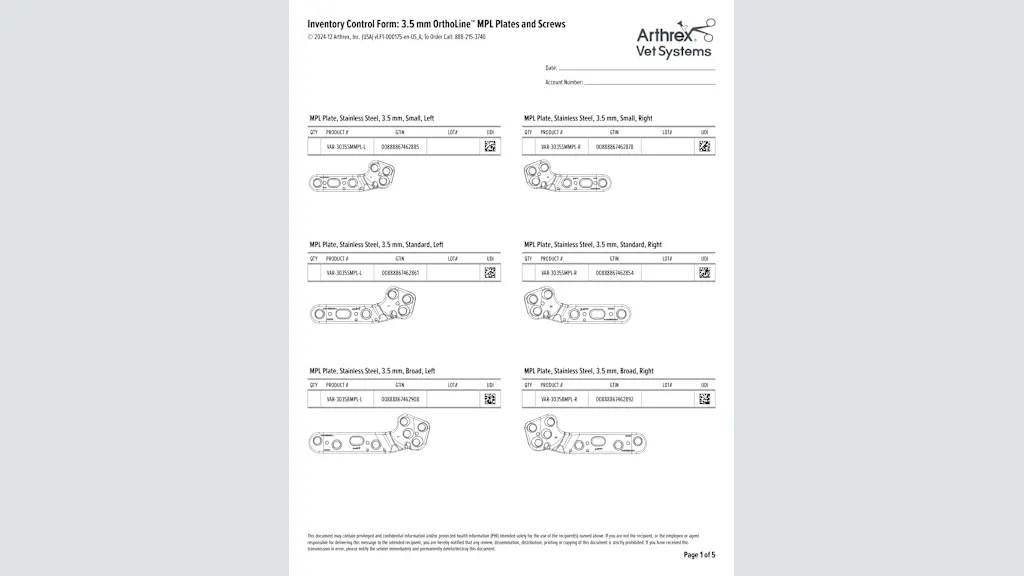

Inventory Control Form: 3.5 mm OrthoLine™ MPL Plates and Screws

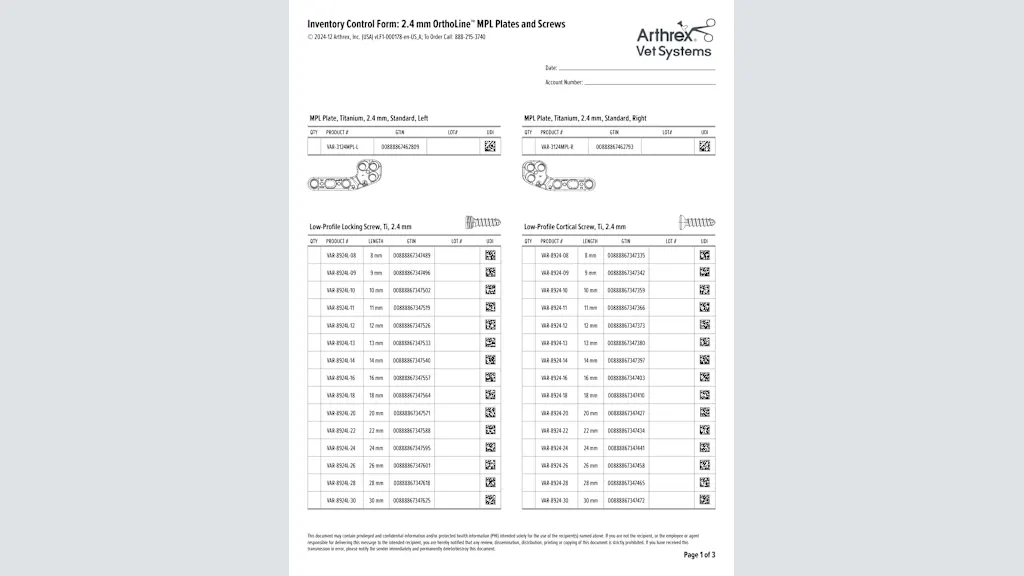

Inventory Control Form: 2.4 mm OrthoLine™ MPL Plates and Screws

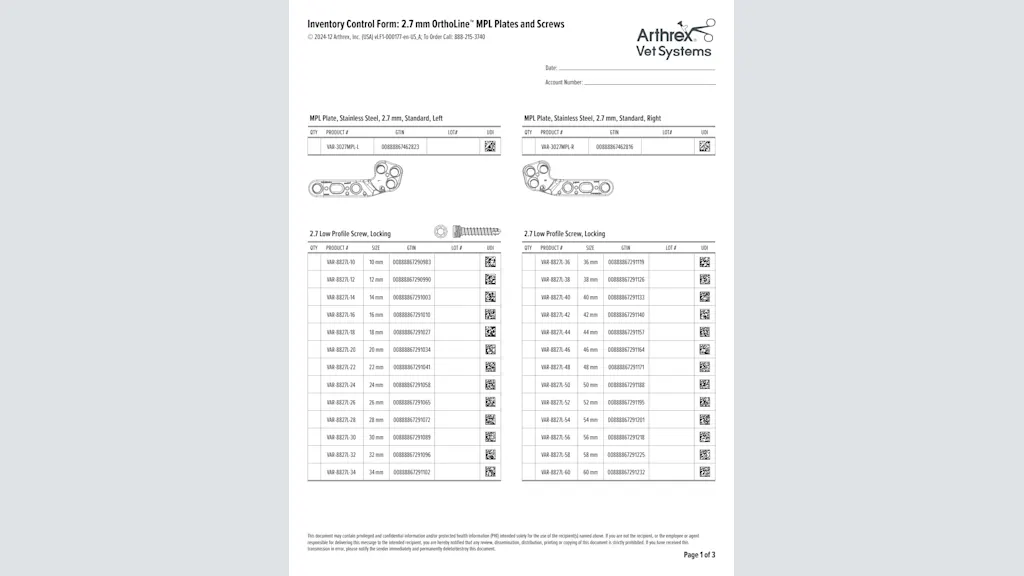

Inventory Control Form: 2.7 mm OrthoLine™ MPL Plates and Screws

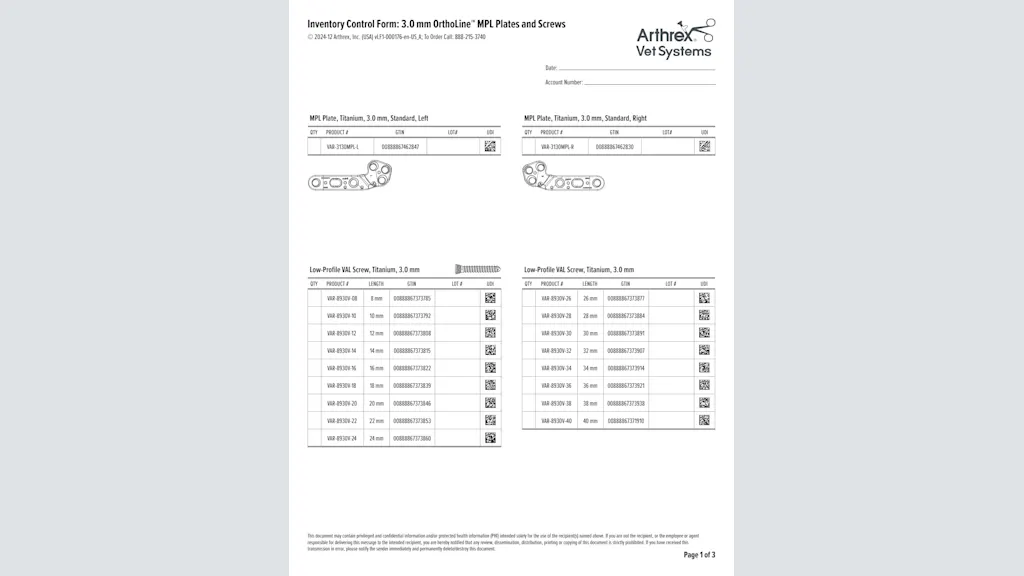

3.0 mm OrthoLine™ MPL Plates and Screws

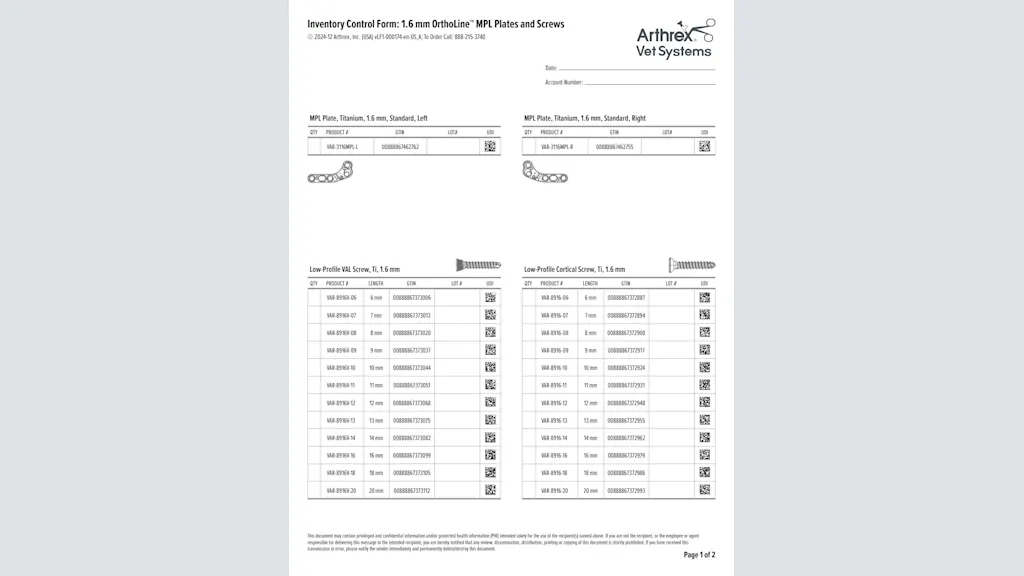

1.6 mm OrthoLine™ MPL Plates and Screws

1.6 mm MPL Plate (2)

1.6 mm MPL Plate (2)

VAR-3116MPL-L

VAR-3116MPL-R

1.6 mm MPL Low-Profile Cortical Screws (12)

1.6 mm MPL Low-Profile Cortical Screws (12)

VAR-8916-06

VAR-8916-07

VAR-8916-08

VAR-8916-09

VAR-8916-10

VAR-8916-11

VAR-8916-12

VAR-8916-13

VAR-8916-14

VAR-8916-16

VAR-8916-18

VAR-8916-20

1.6 mm MPL Low-Profile VAL Screws (12)

1.6 mm MPL Low-Profile VAL Screws (12)

VAR-8916V-06

VAR-8916V-07

VAR-8916V-08

VAR-8916V-09

VAR-8916V-10

VAR-8916V-11

VAR-8916V-12

VAR-8916V-13

VAR-8916V-14

VAR-8916V-16

VAR-8916V-18

VAR-8916V-20

2.0 mm MPL Plate (2)

2.0 mm MPL Plate (2)

VAR-3120MPL-L

VAR-3120MPL-R

2.0 mm Low-Profile Non-Locking Cortical Ti Screws (16)

2.0 mm Low-Profile Non-Locking Cortical Ti Screws (16)

VAR-8920-06

VAR-8920-08

VAR-8920-09

VAR-8920-10

VAR-8920-11

VAR-8920-12

VAR-8920-13

VAR-8920-14

VAR-8920-16

VAR-8920-18

VAR-8920-20

VAR-8920-22

VAR-8920-24

VAR-8920-26

VAR-8920-28

VAR-8920-30

2.0 mm Low-Profile Locking Ti Screws (17)

2.0 mm Low-Profile Locking Ti Screws (17)

VAR-8920L-06

VAR-8920L-07

VAR-8920L-08

VAR-8920L-09

VAR-8920L-10

VAR-8920L-11
